In my “Java on Single Board Computers” series, I already published several posts and videos in which I unpack the board, connect it for the first time, and try to install and run some simple Java code. In this post, I want to share some benchmarks of Java on these boards to get a better idea of the performance we can expect from Java on these platforms.

Already published in this series:

Benchmark Tool

To make the benchmark testing as easy as possible, I created a simple tool (written in Java of course!) that can be executed with JBang. The complete project is available on GitHub at github.com/FDelporte/sbc-java-comparison.

The project consists of two main parts: a runner and a summarizer.

BenchmarkRunner.java - The User Tool

This is the tool you run on your single-board computer. It’s a JBang script that:

  1. Detects system information: This uses the OSHI library to gather details about the board, CPU, memory, JVM, and operating system.
  2. Downloads the Renaissance benchmark suite: Automatically fetches the Renaissance Suite if it’s not already cached.
  3. Runs the benchmarks: Executes each benchmark three times and calculates the average score.
  4. Saves results locally: Creates a JSON file with all the benchmark data.
  5. Uploads to GitHub: Optionally, the results file can be pushed to the repository via the GitHub API for inclusion in the comparison.

You can run it directly from GitHub with a single command, after setting up your GitHub API token and the repository details (if needed):

export GITHUB_TOKEN={ghp_yourtoken}
export BENCH_GITHUB_OWNER={your_github_account}
export BENCH_GITHUB_REPO={your_fork}
export BENCH_GITHUB_BRANCH={your_branch}

jbang https://github.com/FDelporte/sbc-java-comparison/raw/main/BenchmarkRunner.java

If you want to run it without uploading results, add the --skip-push flag. And if your board has memory constraints, you can limit the heap size with --heap-limit 768m for example.

The script generates a report that looks like this:

{
  "systemInfo" : {
    "boardInfo" : {
      "model" : "RK3588 OPi 5 Ultra",
      ...
    },
    "cpuInfo" : {
      "model" : "RK3588 OPi 5 Ultra",
      "identifier" : "ARM Family 8 Model 0xd0b Stepping r2p0",
      "logicalCores" : 8,
      ...
    },
    "memoryInfo" : {
      "totalMB" : 15964,
      ...
    },
    "jvmInfo" : {
      "version" : "25.0.1",
      ...
    },
    "osInfo" : {
      "family" : "Ubuntu",
      ...
    }
  },
  "results" : [
      {
        "name" : "akka-uct",
        "score" : 17702.0,
        "unit" : "ms",
        "description" : "Actor-based concurrency. Interesting for comparing how well thread scheduling works across ARM, x86, and RISC-V kernels."
      },
    ...
  ],
  "timestamp" : "2026-02-18T10:47:46.198052372Z"
}

SummarizeReports.java - The Automation Tool

This tool runs automatically via a GitHub Action whenever a new benchmark result gets added to the repository. This tool:

  1. Loads all files from the report directory.
  2. Finds the unique platforms by CPU model and keeps only the most recent result for each unique CPU.
  3. Generates summary.json, a consolidated file in the data directory.

This summary file is then used by the web dashboard to visualize all the results.

About The Renaissance Benchmark Suite

Rather than creating benchmarks from scratch, I chose to use the Renaissance Benchmark Suite, an open-source project designed specifically for JVM performance evaluation. Renaissance is maintained by researchers and includes a variety of real-world workloads that stress different aspects of the JVM and hardware.

The suite includes benchmarks for parallel computing, functional programming, machine learning, and more. I selected seven benchmarks that are related to the restrictions of single-board computers. I also found out that the scrabble benchmark can’t run with Java 25, so it’s not included.

I specifically avoided the Apache Spark benchmarks from Renaissance, as they’re very memory-hungry and designed for multicore server machines. They would either crash with OutOfMemoryErrors or take forever on these constrained boards.

The Results

Based on the automatically generated summary.json and other configuration files in the repository’s data directory, I created (with a lot of help of Claude.ai…) an interactive dashboard to visualize all the results. You can explore it yourself at webtechie.be/sbc/.

Important note: I ran the tests on the default Ubuntu system provided by the manufacturer of the board, after doing an update/upgrade and installation of OpenJDK 25 and JBang. The runner itself also uses some resources of the board, so this influences the numbers, but the same approach has been used on all boards to have a similar comparison.

The Dashboard

The “Vanilla JavaScript” (= no libraries, just HTML/CSS/JS) dashboard presents the benchmark results in an easy-to-understand format. For each board, you can see:

The dashboard pulls the latest summary and other data files from the repository, so it’s a living comparison that grows as more test reports become available.

Available filters to filter benchmark results by board, test, or system information

Available filters to filter benchmark results by board, test, or system information

Overall score excluding Apple and LattePanda IOTA

Overall score excluding Apple and LattePanda IOTA

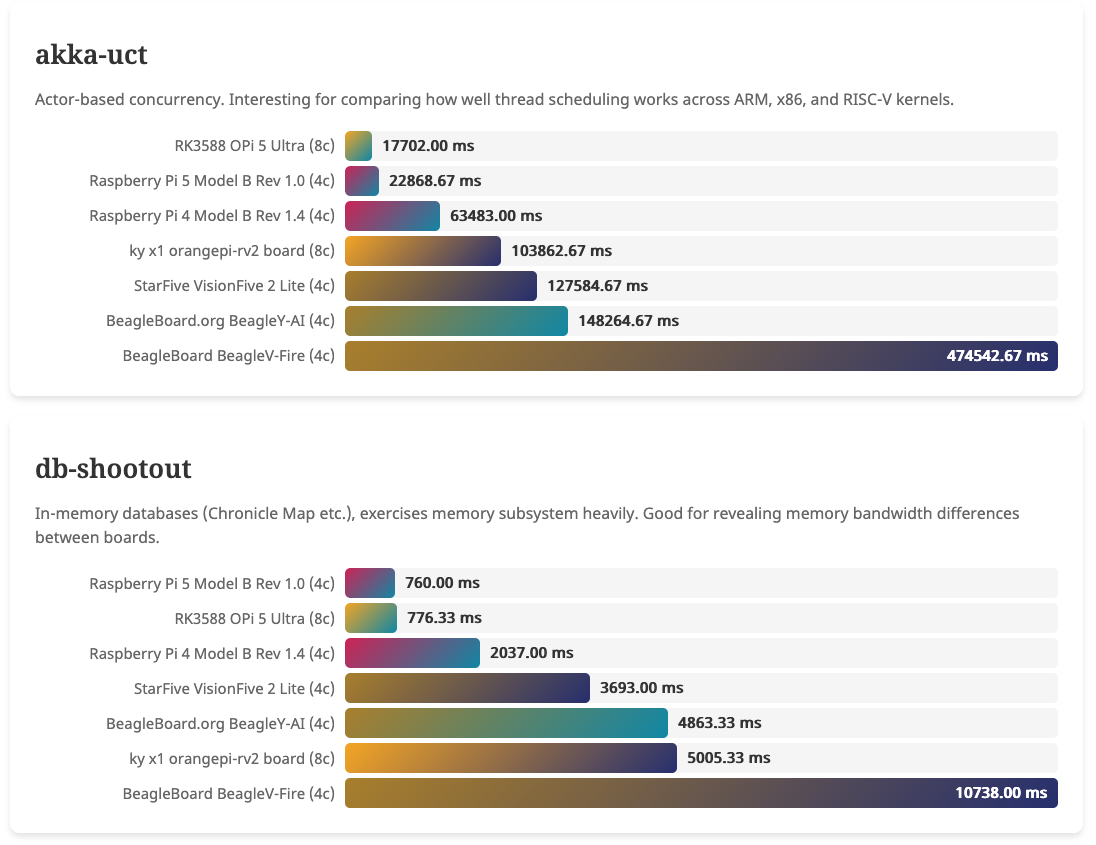

Some of the individual benchmark results

Some of the individual benchmark results

These are screenshots from a first test round, check the actual last status at webtechie.be/sbc/.

Analyzing the Results

Some general remarks about the charts:

Performance Leaders

Not surprisingly, my Apple M2 workstation dominates the charts with the fastest scores across all benchmarks. This is expected, it’s a high-end desktop processor with 12 cores and significantly more power budget than any single-board computer. The LattePanda IOTA with its Intel N150 x86 processor also performs exceptionally well, coming in second place on most tests.

The LattePanda IOTA deserves special attention here. While I initially excluded it from the “true” single-board computer competition, the pricing actually deserves reconsideration. At 110€, it’s comparable to a Raspberry Pi 5 with additional M.2 expansion. The IOTA comes pre-equipped with an M.2 slot for NVMe storage expansion, full-size HDMI, three USB ports, and GPIO headers, all integrated into one board. However, it does require active cooling (the “do not operate without a heatsink” warning is serious), has a slightly larger form factor than traditional Raspberry Pi boards, and demands more power. It’s still more of a compact x86 PC than a Raspberry Pi competitor, but for users who specifically need x86 compatibility (running existing x86 applications, Windows support if needed, or specific libraries), it offers exceptional performance for the price.

For traditional single-board computer use cases like IoT, robotics, GPIO-heavy projects, etc. the ARM-based boards remain the better choice. Definitely the GPIO headers have an advantage on the Raspberry Pi, Orange Pi, and similar boards. I tried the GPIOs on the LattePanda IOTA, and found out that they are exposed by a RP2040 co-processor which connects to the Intel CPU via USB. A strange approach which will be hard to use with the Pi4J library.

The Real Single-Board Computer Competition

Among the boards that fit the traditional SBC form factor (Raspberry Pi-sized, passive or small fan cooling, under $200), the results tell a more nuanced story:

RISC-V Performance

The RISC-V boards present an interesting case. The Orange Pi RV2, BeagleV-Fire, and StarFive VisionFive 2 Lite show that RISC-V is absolutely viable for running Java applications, though performance still lags behind ARM equivalents. This is expected given that RISC-V is a newer architecture with less mature tooling and optimization.

Selecting a Winner

If I had to pick a winner from the “true” single-board computers (excluding my Apple workstation and the LattePanda IOTA), the OrangePi 5 Ultra comes out on top, but the Raspberry Pi 5 is a very close second. These boards offer the best combination of performance and price. Raspberry Pi has the added advantage of a big ecosystem support, and ease of use with the Imager Tool. Orange Pi can still learn a lot from the extensive documentation, and huge library of compatible accessories and software that is available for Raspberry Pi.

Conclusion

I wanted to run benchmarks on multiple boards but needed a solution to do this as quickly and easily as possible. After all, this is a pet project for me. I got the boards for free, but comparing them is a personal challenge in my “free” time… With the current setup with the two scripts, I found a solution which is fast to execute. I only need access from my work PC, copy the GitHub token and JBang command, and let the test run in the background. The GitHub Action then automatically pushes the results to the repository and updates the dashboard. So, goal achieved! :-)

The results confirm: Java runs without problems on all these platforms, from ARM to x86 to RISC-V! Of course, there are performance differences between architectures and specific boards, but every single one of the tested devices can run real-world Java applications with a good performance.

Try It Yourself!

I encourage you to run the benchmark on your own boards and contribute the results! The process is simple:

# Make sure you have Java 25 and JBang installed
jbang https://github.com/FDelporte/sbc-java-comparison/raw/main/BenchmarkRunner.java  --skip-push

If you want your results added to the public dashboard, follow the instructions in the repository README to set up GitHub API access and submit your results.

What’s Next?

This is just the beginning! I also received two Banana Pi boards I still need to unpack and test. And it would also be great to add a benchmark for JavaFX performance, but that will exclude RISC-V as there is no JavaFX port for it (yet?). And, of course, I really want to get started with exploring Pi4J on all these boards and see how it compares to the GPIO use of the Raspberry Pi.

If you have suggestions for additional benchmarks or want to see specific boards tested, let me know in the comments or reach out on Mastodon, Bluesky, or my YouTube community!
